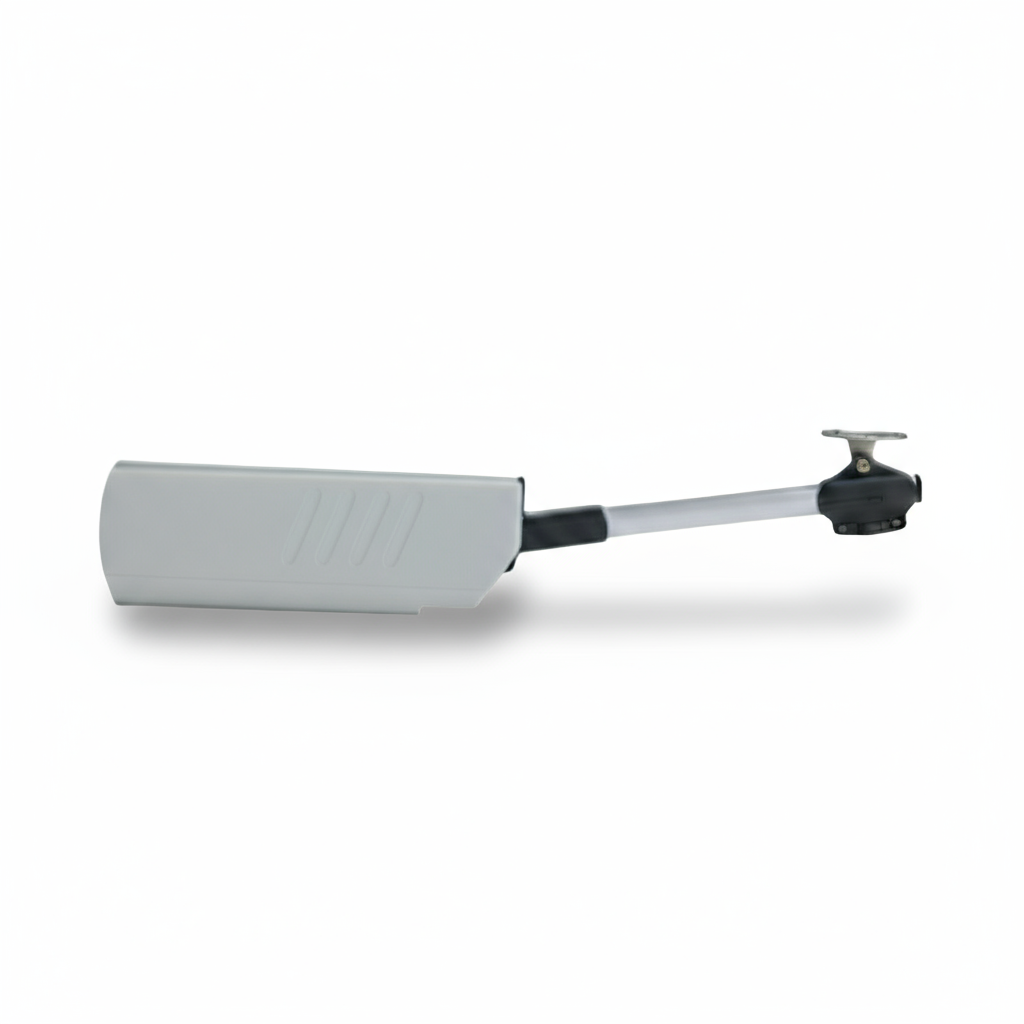

Silverline EasyLift G217 | Free-Stop Lift System (1 Piece)
Silverline EasyLift G217 | Free-Stop Lift System (1 Piece)
SKU:G217-1PC
Couldn't load pickup availability
Share
Calculate Power Factor to see if this lift system works:
Power Factor (LF)= KH * FW
- KH = Cabinet Height (mm)
- FW = Door Handle Weight (kg) x 2 + Front Panel Weight (kg)
- mm = inches x 25.4
- kg = lbs x 0.453
---------------------------------------------------------------------------
For wholesale inquiries or any questions, please contact us.

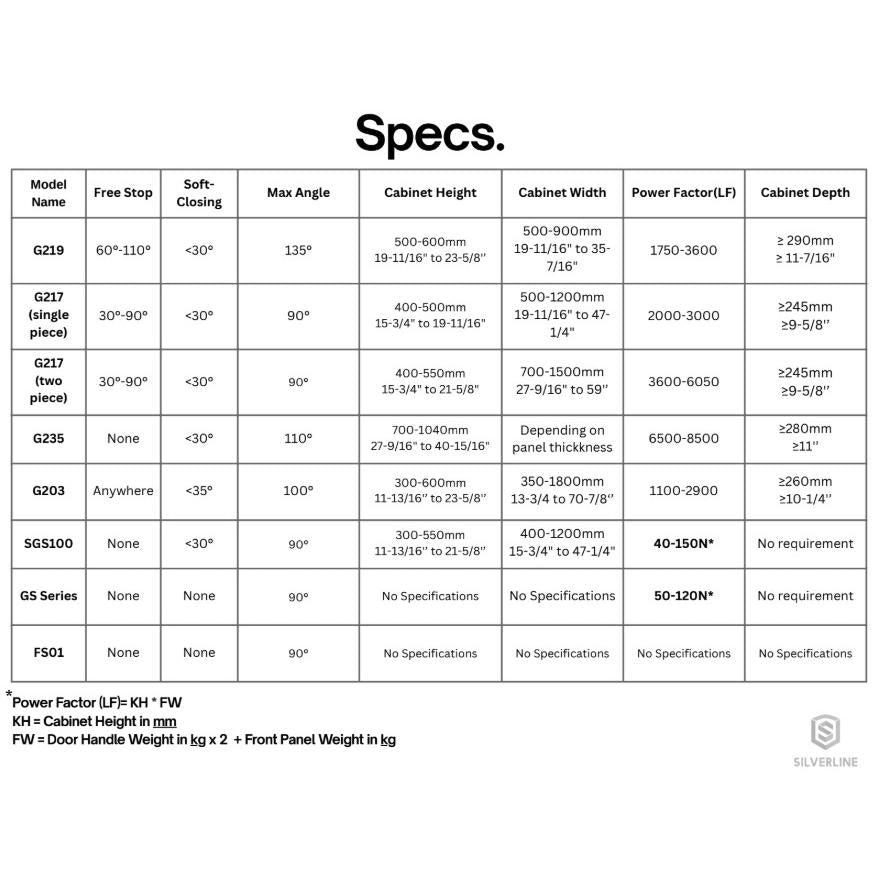

Dimensions
Dimensions
- Max Opening Angle: 90°
- Soft-Close Range: <30°
- Free-Stop Range: 30°- 90°
- Minimum Cabinet Depth: 9-5/8" (≥245mm)
- Applicable Cabinet Height:
- Piece: 15-3/4" to 19-11/16" (400-500mm)
- Pieces: 15-3/4" to 21-5/8" (400-550mm)
- Applicable Cabinet Width:
- Piece: 19-11/16" to 47-1/4" (500-1200)
- Pieces: 27-9/16 to 59" (700-1500mm)
- Power Factor (LF):
- Piece: 2000-3000
- Pieces: 3600-6050
About This Product
About This Product
The Silverline EasyLift G217 is a sleek, single-panel lift system featuring soft-opening, soft-closing, precise free-stop, and adjustable pressure. Engineered for simplicity and smooth operation, this system provides effortless access to your cabinets with just a single arm. Installation is quick and easy: align, screw, adjust, and you’re done.
Key Features
Key Features
- Free-Stop Control: Hold the cabinet door at any angle between 30°–90°
- Soft-Opening & Soft-Closing: Gentle and quiet door movement.
- Pressure Adjustable: Customize the lifting force for doors of different weights.
- Single-Arm Design: Powerful and simple lifting solution for single-panel cabinets.
- Easy Installation: Align, screw, and adjust in minutes.
- Effortless Operation: Smooth, balanced, and reliable performance every time.
- Versatile Use: Ideal for kitchen, office, and furniture cabinets.
Included Hardware
Included Hardware
(1) G217 Lift Mechanism
Mounting Hardware for Easy Installation
