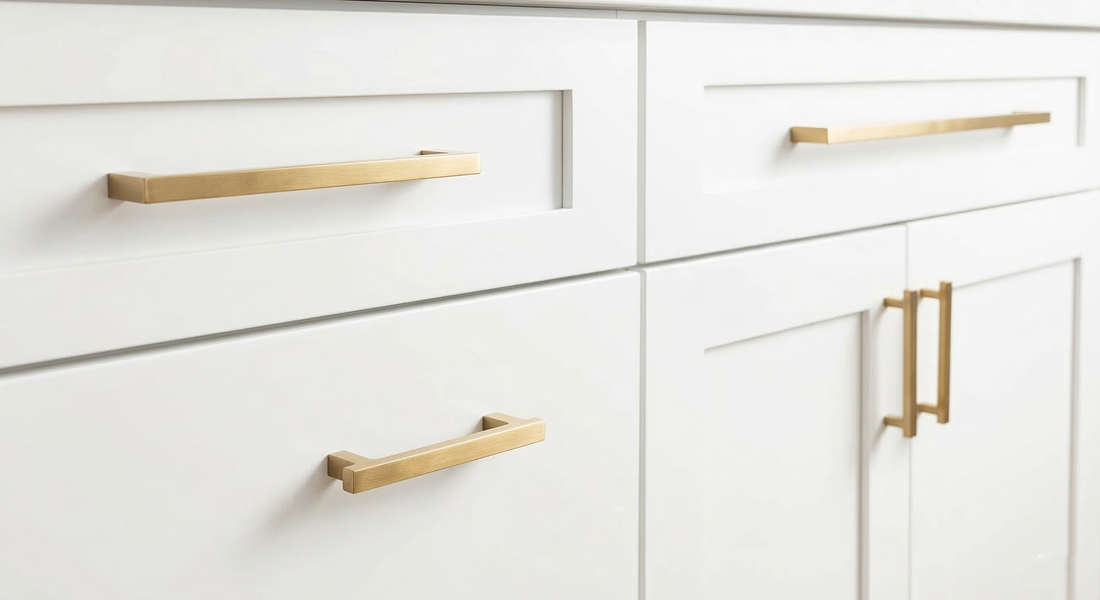

How to Measure Cabinet Pulls (The Right Way): Center-to-Center in 60 Seconds

How to Measure Cabinet Pulls (The Right Way): Center-to-Center in 60 Seconds

Replacing cabinet hardware is one of the easiest ways to upgrade your kitchen or bathroom. But before you buy, you need to know exactly how to measure cabinet pulls so your new hardware fits perfectly into the existing holes.

Guessing the size usually leads to crooked handles, exposed old holes, or the frustrating task of drilling new ones. Don't worry—we are here to help.


Quick Answer: The 60-Second Measurement

The only measurement that truly matters when replacing hardware is the center-to-center (C-C) measurement.

How to find it: Take a ruler or tape measure, find the exact center of one screw hole, and measure straight across to the exact center of the second screw hole. That’s your C-C measurement! Always measure in millimeters (mm) for the highest accuracy, as most hardware is manufactured using the metric system.

What “Center-to-Center (C-C)” Means (and Why It Matters)

If you are shopping for cabinet handles, you will see "C-C" everywhere.

C-C vs. Overall Length vs. Projection

  • Center-to-Center (C-C): The distance between the two screw holes. This determines if a pull will fit your cabinet doors.
  • Overall Length: The total length of the handle from end to end. This is purely for aesthetics and making sure the handle doesn't hit adjacent cabinet doors.
  • Projection: How far the handle sticks out from the cabinet face.

Pulls vs. Knobs

Remember, this guide is for pulls and handles. Knobs only require a single screw, so they do not have a center-to-center measurement.

Tools You Need (and a 10-Second Setup Tip)

  • A standard tape measure, a rigid ruler, or a digital caliper (for maximum precision).
  • A screwdriver to remove the old pull.

Pro Tip: Place a piece of painter's tape across the old holes and mark the exact centers with a pen. Then, measure the distance between the ink marks. This prevents your ruler from slipping and guarantees an accurate reading.

Step-by-Step: Measure Cabinet Pull Hole Spacing (C-C)

If the pull is currently installed (Fastest Method)

Hold your tape measure against the front of the installed pull. Align the zero mark with the center of the left screw head, and read the measurement at the center of the right screw head.

If the pull is removed (Most Accurate Method)

Take the old pull off the cabinet door. Flip it over and measure the distance between the centers of the two screw holes on the back of the handle itself. Alternatively, measure the exact distance between the two empty holes drilled into your cabinet door.

How to measure in inches vs. mm (Don’t mix systems)

Hardware is a precise industry. While you might be used to inches, measuring in millimeters is much safer. Why? Because a 3-3/4 inch pull is actually exactly 96mm. Trying to read tiny fractions of an inch on a tape measure often leads to ordering the wrong size. Measure in mm first, then use our cheat sheet below.

Size Cheat Sheet (Most Common C-C Sizes You’ll Actually Buy)

If you measured your old pulls, chances are they match one of these standard sizes:

  • 96mm = 3.78" (Commonly sold as 3-3/4 inch cabinet pulls or 3.75" pulls)
  • 128mm = 5.04" (Commonly sold as 5 inch cabinet pulls)
  • 160mm = 6.30" (Commonly sold as 6.3 inch cabinet pulls)

Quick Decision Line: If you measured exactly 128mm between holes, immediately filter your shopping search for "128mm cabinet pulls" to guarantee a fit.

Standard Cabinet Pull Sizes (Quick Reference)

Cabinet Handle Sizes: How to Choose a Length That Looks Right

If you are drilling new holes and aren't restricted by an existing center-to-center measurement, how do you choose? As a general rule of thumb for DIY homeowners: the pull length should be about 1/3 the width of the drawer or height of the cabinet door.

  • Small Drawers (under 12"): Use knobs or small 3" to 96mm pulls.
  • Standard Drawers (12" to 30"): Use 96mm to 128mm pulls.
  • Oversized Drawers (over 30"): Use 160mm pulls or install two smaller pulls side-by-side.

Replacing Drawer Pulls: Measure Once, Avoid Extra Holes

When dealing with drawer pull hole spacing for replacement, your primary goal is to reuse the existing holes.

If your new pull doesn’t match the holes:

If you fell in love with a handle but the C-C is slightly off, you have options:

  1. Buy a Backplate: A metal backplate sits behind the new handle and can hide the old, exposed holes.
  2. Fill and Paint: Fill the old holes with wood putty, sand, and touch up the paint before drilling new holes.
  3. Choose a Longer Pull: Sometimes, you can find a pull with a larger overall length and a wider base that completely covers the old hole, allowing you to drill a fresh one beside it.

Common Mistakes DIYers Make (and How to Avoid Them)

  • Measuring end-to-end instead of center-to-center: This is the https://www.google.com/search?q=%231 reason people return cabinet hardware. Overall length will never tell you the hole spacing.
  • Reading from the screw edge, not the hole center: If you measure from the left edge of one hole to the left edge of the next, your measurement will be slightly off. Always go center-to-center.
  • 128mm vs 5 inch pulls confusion: 5 inches is exactly 127mm. While 1mm seems tiny, a stiff metal handle won't bend to fit. Always rely on the metric (mm) measurement.

The Pre-Purchase Checklist

Before you hit "Add to Cart", verify these four things:

  1. C-C Measurement: Matches your existing holes.
  2. Overall Length: Won't bump into the cabinet frame when opened.
  3. Projection: Leaves enough room for your fingers without snagging your clothes.
  4. Screw Length: Matches the thickness of your cabinet doors (standard is usually 1" or 1-1/2" for drawer fronts).

FAQ

96mm in inches cabinet pulls—what is it exactly? 96 millimeters converts to roughly 3.78 inches. In the hardware world, these are standardly sold and labeled as 3-3/4 inch pulls.

Is 128mm the same as 5 inches? Close, but no. 5 inches is exactly 127mm. If your cabinet holes are precisely 128mm apart, a strict 5-inch pull might be slightly too tight depending on the tolerance of the screws. Stick to finding 128mm pulls.

How do I measure drawer pulls replacement if I don’t want to re-drill? Simply take off the old pull, measure the exact distance between the center of the two empty holes in millimeters, and buy a handle with that exact C-C measurement.

What if my holes are slightly off or crooked? If your existing holes were drilled poorly, you might need to use a slightly smaller screw to give yourself a tiny bit of "wiggle room," or fill the hole with a toothpick and wood glue to re-center the screw bite.

Written by the Amerfit Hardware team – Your cabinet hardware specialists.
